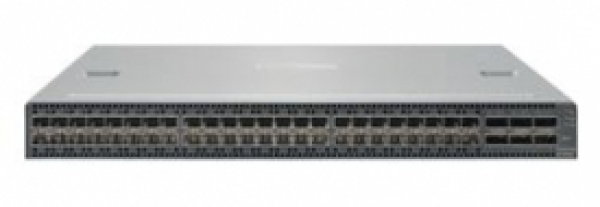

Manufacturer | Supermicro |
SKU | SSE-X3648SR |
Description | Port Attributes: - 48x Ten-Gigabit Ethernet ports - SFP+ - 6x Forty-Gigabit Ethernet ports - QSFP+ - RJ-45 (for console cable) - RJ-45 1G Ethernet Management Port - USB Switching: - Switching Capacity: 1440 Gbps - Broadcom Trident II Switch Chip - Wire-speed Layer 3 Routing - 1:1 Non-blocking connectivity Processor/Memory/Storage/OS: - Intel Rangeley CPU - 4G DRAM - 16G SSD - ONIE - Cumulus Linux Ready Power: - Redundant Hot-pluggable 460W Power Supplies - AC Input: 100-127/200-240 V, 50/60 Hz - Power Consumption: 305 Watts - Regular and Reverse Airflow Models Physical/Environmental: - 1U form factor for flexible installation - Weight: Net weight: 10.13kg (22.29 lb with 2 PSUs) - Size (W x D x H): 433.8 x 550 x 44 mm (17.07 x 21.6 x 1.73 inches) - Temperature: Operating 0°C to 40°C (32°F to 104°F) - Humidity: Operating: 5% to 95% (non-condensing) |
Ports | 48x10Gbps SFP+, 6x40Gbps QSFP+ |
Switching capacity | 1.41Tbps |
Type of cooling | Air - Reverse (back to front) |
Power type | A/C |
Max. power consumption | 305 W |
Is FAN? | Yes |
Management ports # | 1 |
